Clark Residual Plots

import chainladder as cl

This example demonstrates how to recreate the normalized residual plots in Clarks LDF Curve-Fitting paper (2003).

# Fit the basic model
genins = cl.load_sample('genins')
genins = cl.ClarkLDF().fit(genins)

# Grab Normalized Residuals as a DataFrame
norm_resid = genins.norm_resid_.melt(
    var_name='Development Age',
    value_name='Normalized Residual').dropna()

# Grab Fitted Incremental values as a DataFrame
incremental_fits = genins.incremental_fits_.melt(
    var_name='Development Age',
    value_name='Expected Incremental Loss').dropna()
incremental_fits = incremental_fits.merge(
    norm_resid, how='inner', left_index=True, right_index=True)

Show code cell source

Hide code cell source

import matplotlib.pyplot as plt
plt.style.use('ggplot')
%config InlineBackend.figure_format = 'retina'

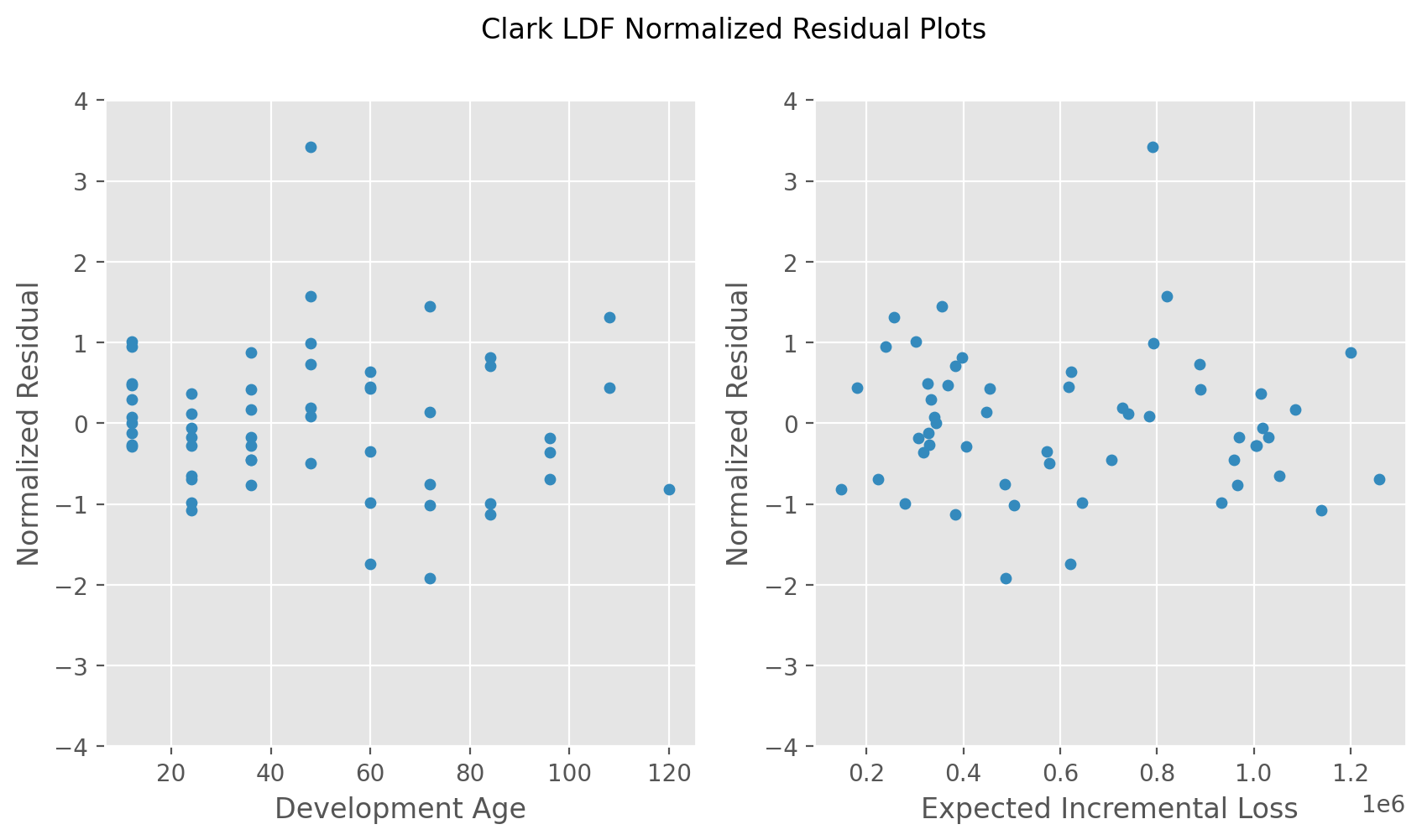

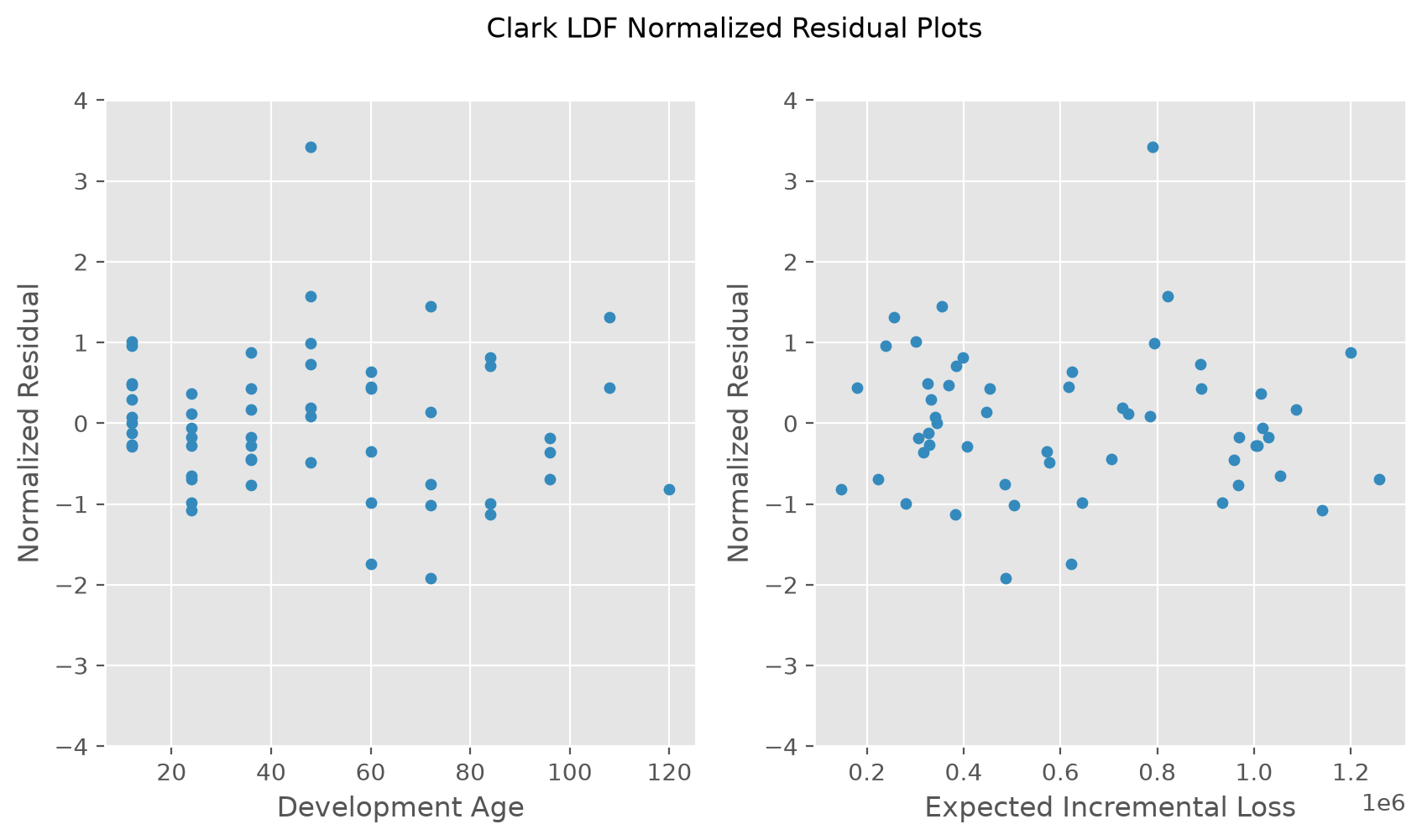

# Plot the residuals vs Age and vs Expected Incrementals
fig, ((ax0, ax1)) = plt.subplots(ncols=2, figsize=(10,5))

# Left plot
norm_resid.plot(
    x='Development Age', y='Normalized Residual',
    kind='scatter', grid=True, ylim=(-4, 4), ax=ax0)
# Right plot
incremental_fits.plot(
    x='Expected Incremental Loss', y='Normalized Residual',
    kind='scatter', grid=True, ylim=(-4, 4), ax=ax1)
fig.suptitle("Clark LDF Normalized Residual Plots");
